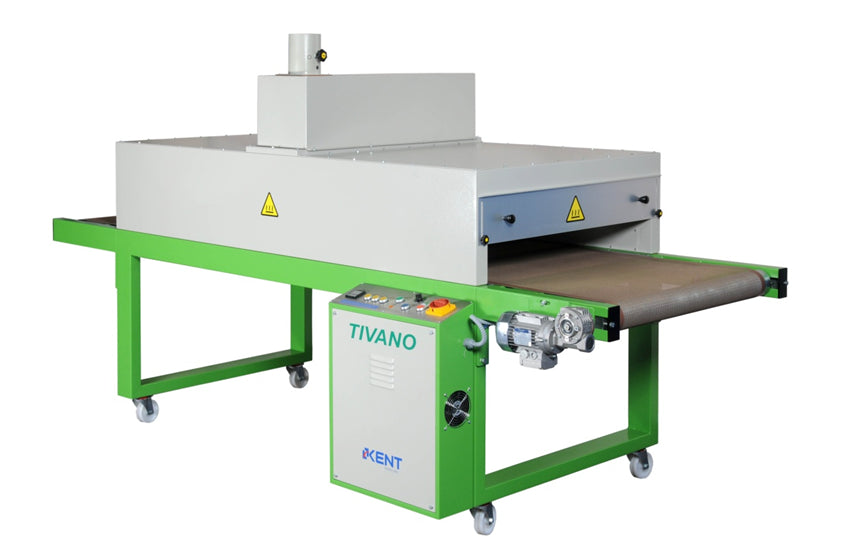

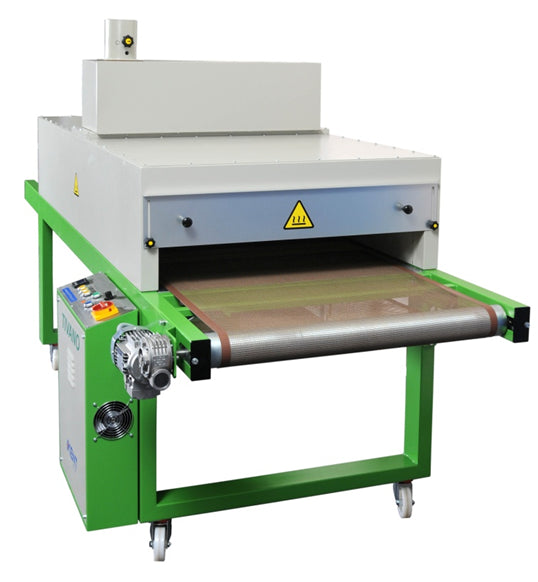

Infradryer Eco 2M infrared drying tunnel

11.857,00€ HT

Description

The INFRADRYER ECO is a drying tunnel equipped to dry plastisol, water-based or solvent-based inks.

The INFRADRYER ECO is equipped with a hot air turbine that will operate in a closed air circuit so that you have maximum drying capacity for water-based drying and other types of inks .


-

Technical data:

  • Drying method - Hot air + DIRECT IR
  • Mesh mat coated with TEFLON
  • Electronic speed regulator from web speed
  • Re circulation of air in a closed loop circuit for a water-based and plastisol drying option
  • Chrome nickel heating emitters
  • Digital temperature controller with PID method
  • Chimney for exhausting fumes
  • The maximum height of object that you can dry is 13 cm as standard

Download the brochure

Brochure Infradryer Eco 2M

objects
Infradryer Eco 2M IN ECO 20005 IN ECO 20007 IN ECO 20008 IN ECO 20010 IN ECO 20012
Drying surface 200 x 50 cm 200 x 70 cm 200 x 80 cm 200 x 100 cm 200 x 120 cm
Belt speed 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn
Belt width 50 cm 70 cm 80 cm 100 cm 120 cm
Max. 13 cm 13 cm 13 cm 13 cm 13 cm
Max power 8 kW 12.5 kW 13.5 kW 15.5 kW
Max temperature 180 ° C 180 ° C 180 ° C 200 ° C 200 ° C
Dimensions 310 x 82 x 150 cm 310 x 102 x 150 cm 310 x 112 x 150 cm 310 x 132 x 150 cm 310 x 152 x 150 cm
Weight 180 kg 200 kg 230 kg 260 kg
Power supply 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V
DRYING COMPATIBILITY Textile screen printing - plastisol, water-based and solvent inks
Heating length
Belt width

The INFRADRYER ECO is a drying tunnel equipped to dry plastisol, water-based or solvent-based inks.

The INFRADRYER ECO is equipped with a hot air turbine that will operate in a closed air circuit so that you have maximum drying capacity for water-based drying and other types of inks .


-

Technical data:

  • Drying method - Hot air + DIRECT IR
  • Mesh mat coated with TEFLON
  • Electronic speed regulator from web speed
  • Re circulation of air in a closed loop circuit for a water-based and plastisol drying option
  • Chrome nickel heating emitters
  • Digital temperature controller with PID method
  • Chimney for exhausting fumes
  • The maximum height of object that you can dry is 13 cm as standard

Download the brochure

Brochure Infradryer Eco 2M

objects
Infradryer Eco 2M IN ECO 20005 IN ECO 20007 IN ECO 20008 IN ECO 20010 IN ECO 20012
Drying surface 200 x 50 cm 200 x 70 cm 200 x 80 cm 200 x 100 cm 200 x 120 cm
Belt speed 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn 34 to 180 m / mn
Belt width 50 cm 70 cm 80 cm 100 cm 120 cm
Max. 13 cm 13 cm 13 cm 13 cm 13 cm
Max power 8 kW 12.5 kW 13.5 kW 15.5 kW
Max temperature 180 ° C 180 ° C 180 ° C 200 ° C 200 ° C
Dimensions 310 x 82 x 150 cm 310 x 102 x 150 cm 310 x 112 x 150 cm 310 x 132 x 150 cm 310 x 152 x 150 cm
Weight 180 kg 200 kg 230 kg 260 kg
Power supply 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V 3 x 230 V or 3 x 400 V
DRYING COMPATIBILITY Textile screen printing - plastisol, water-based and solvent inks
