Chiossi e Cavazzuti  |  SKU: 1380010

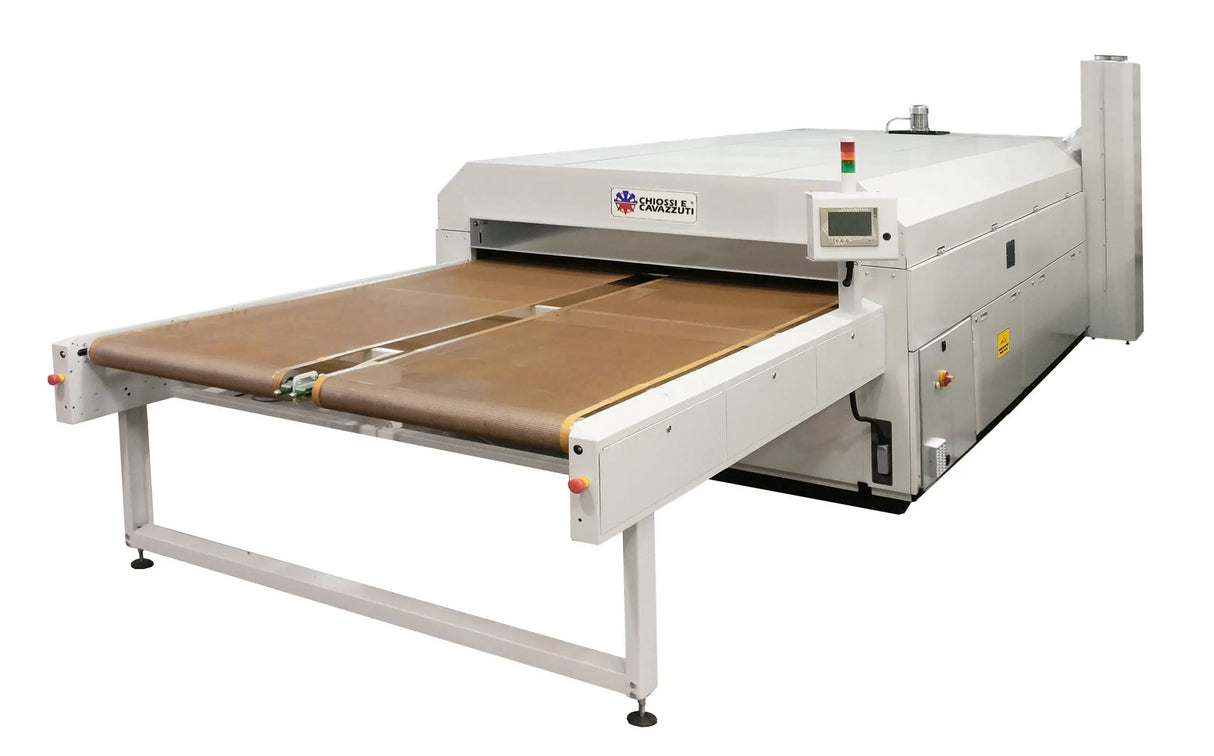

Griff 4180 drying tunnel

35.880,00€ HT

Description

The “Dryer Griff” drying tunnel is a gas-operated oven, specially designed to dry digital textile prints and screen printing, printed with water-based inks or Plastisol.

The hot air circulation is particularly precise and uses reverse blade fans, high efficiency and low noise.

It is not compatible with inks containing flammable solvents.

Other Griff models available: GRIFF 8180 / GRIFF 6180 / GRIFF 4140


Product advantages:
  • Precise and homogeneous air circulation thanks to a high efficiency silent ventilation system

  • The outlet nozzles propel the air at high speed perpendicular to the product

  • The efficiency of the oven is preserved thanks to the presence of filters on each fan, which allow low maintenance and simple maintenance

  • The good insulation of the oven limits energy loss, and helps to keep a cool working environment

  • 130mm working height

  • Available with two belt conveyors, which allows to work simultaneously with different drying times. Each belt has its own speed control, which can be adjusted according to the needs of the products

ON REQUEST: GRIFF 8180 8000mm x 1800mm

Technical data:

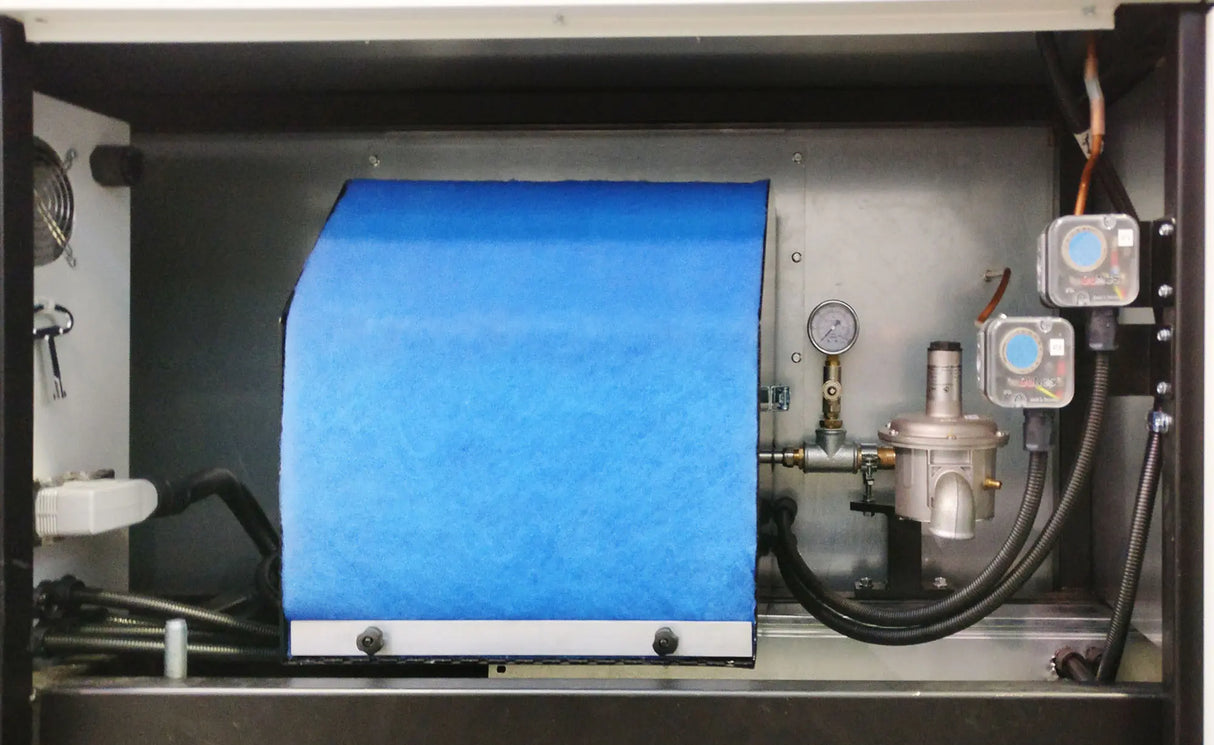

  • Gas heating helps reduce energy costs. The temperature is regulated by a precision thermostat, controlling a modulating valve that controls the gas flow to the burner inlet. The flame is therefore always present, and its intensity varies according to the power required.

  • As a result, the temperature never exceeds the indicated value, and prevents any damage caused to sensitive textiles. The air exchange is calibrated to expel water vapor and vapor from combustion, which facilitates drying.

Download the brochure

Griff Brochure

DRYING COMPATIBILITY Digital printing and textile screen printing
DRYING SYSTEM Hot air
POWER SUPPLY 400 V 3P + N + PE
CURRENT 4.8 A
MAXIMUM POWER 2.5 kW
BELT LENGTH 400 cm
AIR PRESSURE 30 mbar
BURNER POWER 40 kW
MAXIMUM TEMPERATURE 200 ° C
NATURAL GAS OR LIQUID GAS BURNER Riello RX 70 S / PV H
DISCHARGE FLOW 1500 m³ / h - Ø 200
WEIGHT 2000 kg
Heating zone x belt width

The “Dryer Griff” drying tunnel is a gas-operated oven, specially designed to dry digital textile prints and screen printing, printed with water-based inks or Plastisol.

The hot air circulation is particularly precise and uses reverse blade fans, high efficiency and low noise.

It is not compatible with inks containing flammable solvents.

Other Griff models available: GRIFF 8180 / GRIFF 6180 / GRIFF 4140


Product advantages:
  • Precise and homogeneous air circulation thanks to a high efficiency silent ventilation system

  • The outlet nozzles propel the air at high speed perpendicular to the product

  • The efficiency of the oven is preserved thanks to the presence of filters on each fan, which allow low maintenance and simple maintenance

  • The good insulation of the oven limits energy loss, and helps to keep a cool working environment

  • 130mm working height

  • Available with two belt conveyors, which allows to work simultaneously with different drying times. Each belt has its own speed control, which can be adjusted according to the needs of the products

ON REQUEST: GRIFF 8180 8000mm x 1800mm

Technical data:

  • Gas heating helps reduce energy costs. The temperature is regulated by a precision thermostat, controlling a modulating valve that controls the gas flow to the burner inlet. The flame is therefore always present, and its intensity varies according to the power required.

  • As a result, the temperature never exceeds the indicated value, and prevents any damage caused to sensitive textiles. The air exchange is calibrated to expel water vapor and vapor from combustion, which facilitates drying.

Download the brochure

Griff Brochure

DRYING COMPATIBILITY Digital printing and textile screen printing
DRYING SYSTEM Hot air
POWER SUPPLY 400 V 3P + N + PE
CURRENT 4.8 A
MAXIMUM POWER 2.5 kW
BELT LENGTH 400 cm
AIR PRESSURE 30 mbar
BURNER POWER 40 kW
MAXIMUM TEMPERATURE 200 ° C
NATURAL GAS OR LIQUID GAS BURNER Riello RX 70 S / PV H
DISCHARGE FLOW 1500 m³ / h - Ø 200
WEIGHT 2000 kg
