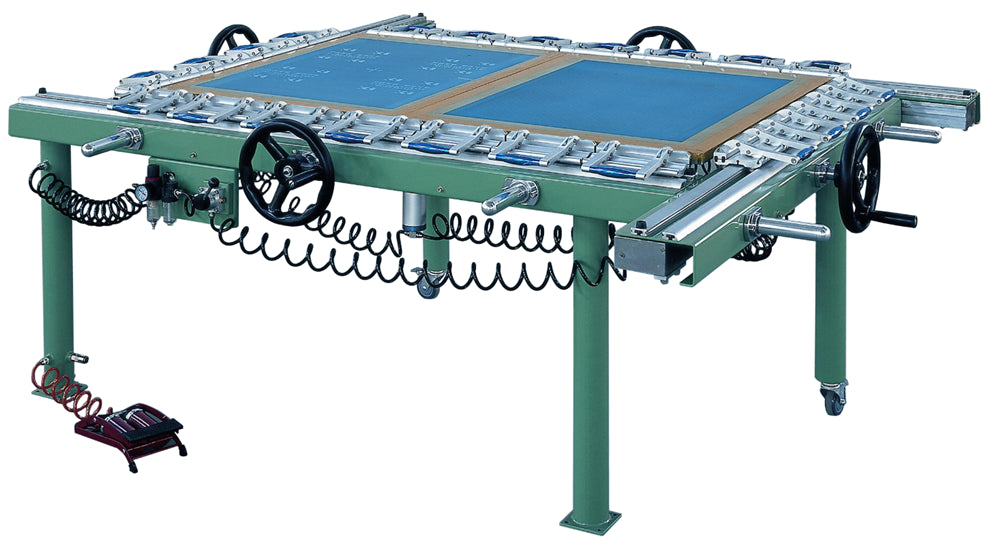

HYBRID SCREEN is a stretcher mesh hybrid screen printing screen tensioner (manual / pneumatic system) equipped with 4 tension bars assembled in a foot structure.
HYBRID SCREEN is ideal for heavy use and is able to stretch multiple screens with different formats at one time.
There are different sizes: 100 x 100 cm / 150 x 150 cm / 200 x 200 cm / 200 x 250 cm
-
- THE HYBRID SCREEN has the possibility to adapt to several sizes by moving 2 bars in a single adjustment movement.
- The 2 stretching bars that move are equipped with wheels for easier movement. High strength aluminum clamps to keep the mesh in high tension.
- Mesh tension adjustment made with softness and precise values.
| HYBRID SCREEN |
HYD 1010 |
HYD 1515 |
HYD 2020 |
HYD 2025 |
| Extension dimension |
100 x 100 cm |
150 x 150 cm |
200 x 200 cm |
200 x 250 cm |
| Max extension length |
9 cm |
9 cm |
9 cm |
9 cm |
| Max mesh tension |
30-35 N |
30-35 N |
30-35 N |
30-35 N |
| Max format outside the frame at tension |
110 x 110 cm |
160 x 160 cm |
210 x 210 cm |
210 x 260 cm |
| Min format inside the frame at tension |
70 x 70 cm |
70 x 70 cm |
70 x 70 cm |
70 x 70 cm |
| Weight |
220 kg |
280 kg |
360 kg |
440 kg |
