Transmatic

TS 5PA pneumatic heat press

5.690,00€ HT

...€ HT ou dès ...€ HT/mois sur ... mois

36 mois48 mois60 mois

Offre réservée aux professionnels sous réserve d'acceptation du dossier par notre partenaire financier.

Financing conditions

Rents are to be increased by the VAT in force. Monthly periodicity, term due, payment of rents by SEPA direct debit. Residual value 2%
Valid on MUST TECHNOLOGIE equipment. Non-contractual scale, subject to change at any time without notice depending on refinancing rates.
Conditions valid subject to acceptance by the Client of the General and Specific Conditions of leasing of FRANFINANCE, SASU with capital of 31,357,776 Euros, with unique identification number 719 807 406 RCS NANTERRE, Head office: 53 rue du Port – CS 90201 – 92724 Nanterre Cedex, insurance intermediary registered with ORIAS n° 07 008 346 - www.orias.fr, and subject to acceptance of the Client's financing file by FRANFINANCE.
The transaction includes €150 excluding VAT for study and file preparation fees and €43 excluding VAT for registry fees. The fixed rate pricing conditions proposed above are those applicable.

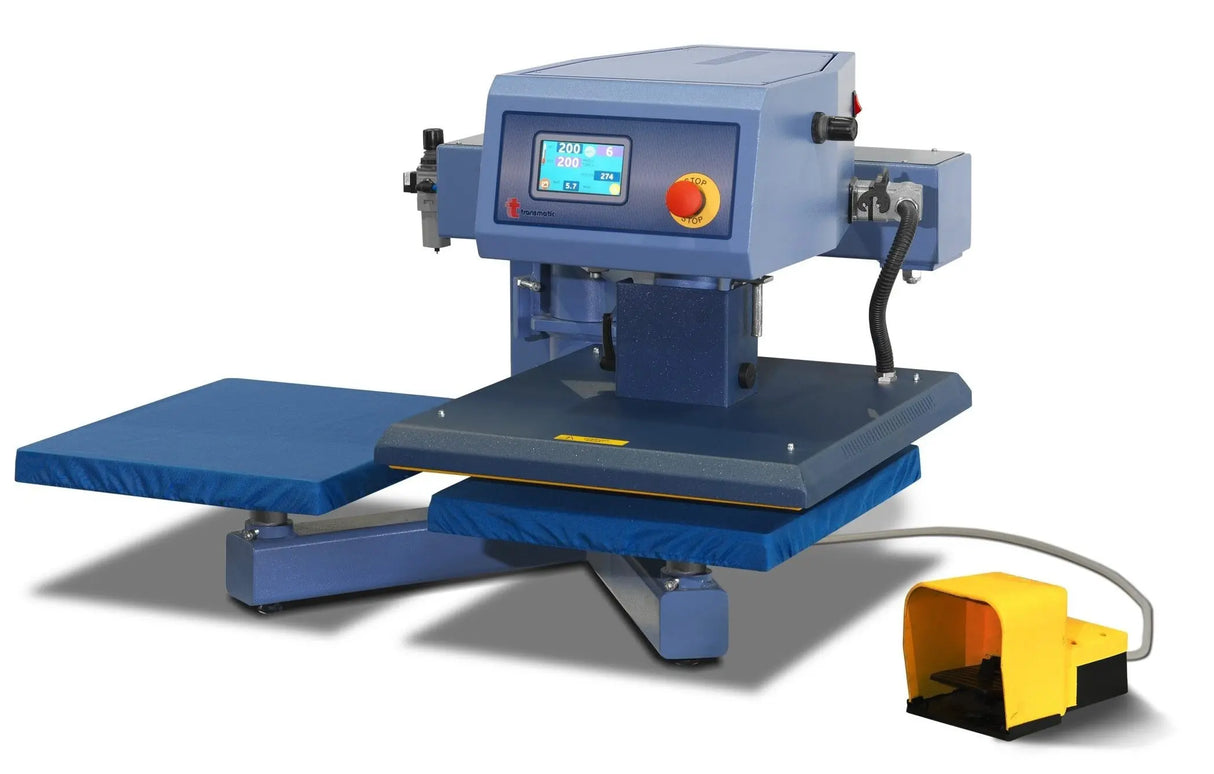

TS 5PA is a 50 x 40 cm pneumatic heat transfer press with double work plate, removable heating plate, and pedal control.

It has an electronic and digital touchscreen for easy visual control of temperature, pressure and time. The trays are interchangeable.

  • Electronic digital regulation of time, temperature, pressure with damage indicator
  • The bottom plates are interchangeable
  • Count the daily production and give the history

Download the brochure : Brochure TS 5PA

Power supply 230 V
Average energy consumption 1 kW / h
Maximum power 2.2 kW
Plate dimensions 50 x 40 cm
Max pressure 600 gr / cm²
Max time regulation 999.9 seconds (approximately 16 min)
Weight 115 kg
Maximum temperature 255 °C

Payment & Security

Payment Methods

  • American Express
  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store or have access to your credit card details.

Transmatic

TS 5PA pneumatic heat press

5.690,00€ HT

Weight

115 kg

Working width

/

Number of print heads

/

Working size

/

Ink type

/

Ink Colors

/

Vitesse 4 Pass

/

Speed 6 Pass

/

Speed 8 Pass

/

Tension

/

Power

/

Working environment temperature

/

Humidity

/

Machine size

/

Dimensions

/

Type

Pneumatic press

Country of manufacture

/

Printhead Type

/

Power supply

/

Applications

/

Connectivity

/

Software

/

Max Resolution

/

Max Production

/

Average energy consumption

/

Hard chrome lower cylinder diameter

/

Upper silicone cylinder diameter

/

Belt width

/

Screen

/

Productivity

High

Counters

/

Compressor

/

Opening

/

Band size

/

Tape Speed

/

Diameter

/

Max Pressure

/

Max Temperature

255°C

Max time regulation

999.9 seconds (about 16 min)

Plate dimensions

/

Map

/

Shock absorber

/

Package size

/

Preheating plate temperature

/

Maximum working speed

/

Heating temperature

/

Heating tube length

/

TS 5PA is a 50 x 40 cm pneumatic heat transfer press with double work plate, removable heating plate, and pedal control.

It has an electronic and digital touchscreen for easy visual control of temperature, pressure and time. The trays are interchangeable.

Download the brochure : Brochure TS 5PA

Power supply 230 V
Average energy consumption 1 kW / h
Maximum power 2.2 kW
Plate dimensions 50 x 40 cm
Max pressure 600 gr / cm²
Max time regulation 999.9 seconds (approximately 16 min)
Weight 115 kg
Maximum temperature 255 °C
