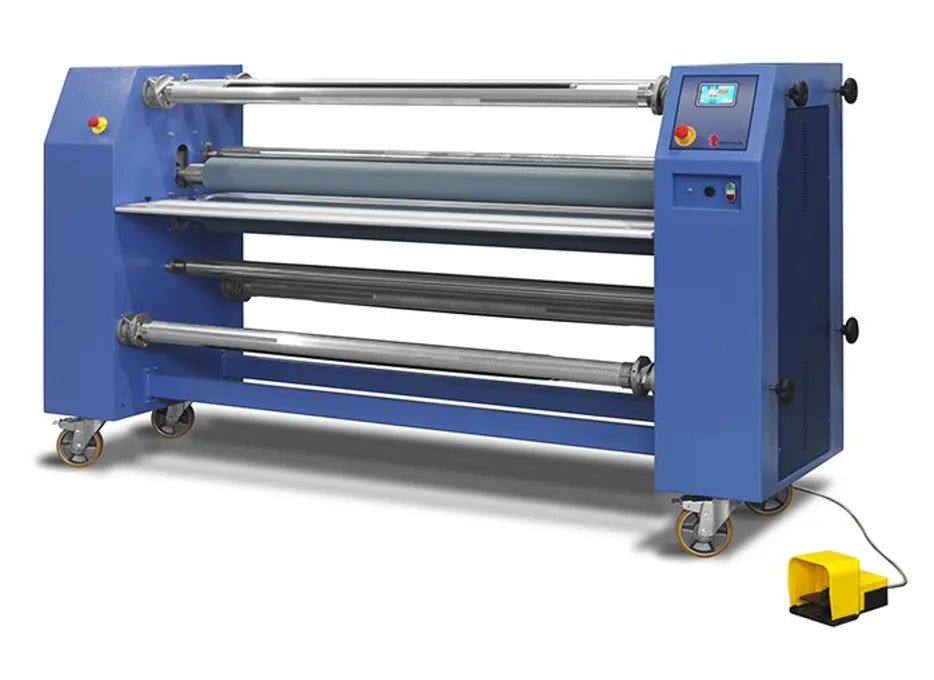

Lamina 115/145/165/200 laminator

Professional hot and cold laminator designed for assembly, laminating and panel mounting.

The laminator also offers the possibility of using hot rolling with lower costs than a cold adhesive film.

Product advantages:

Technical data:

• Working width 115/145/165/200 cm
• Maximum space between rolls 80mm
• Digital display
• Heated upper roller, with electronic temperature control from 0 to 80 ° C
• Electronic speed control, from 0 to 10m / min, and optional on request up to 20m / min
• Workflow managed by pedal
• High clearance silicone rollers
• Rapid roll delivery system
• Steel worktop, removable
• Safety cell with manual safety and emergency stop
• Working height of 900mm

Model	115	145	165	200
Working width	115 cm	145 cm	165 cm	200 cm
Max thickness between the rollers	80 mm	80 mm	80 mm	80 mm
Speed ​​	0-10 mt / min	0-10 mt / min	0-10 mt / min	0-10 mt / min
Roller temperature	0 ° - 80 ° C	0 ° - 80 ° C	0 ° - 80 ° C	0 ° - 80 ° C
Working height	900 mm	900 mm	900 mm	900 mm
Max power	2000 W	2000 W	2000 W	2000 W
Energy requirement	200 V - 50 Hr	200 V - 50 Hr	200 V - 50 Hr	200 V - 50 Hr
Dimensions	1840 x 70 x 1390 cm	2140 x 70 x 1390 cm	2340 x 70 x 1390 cm	2740 x 70 x 1390 cm
