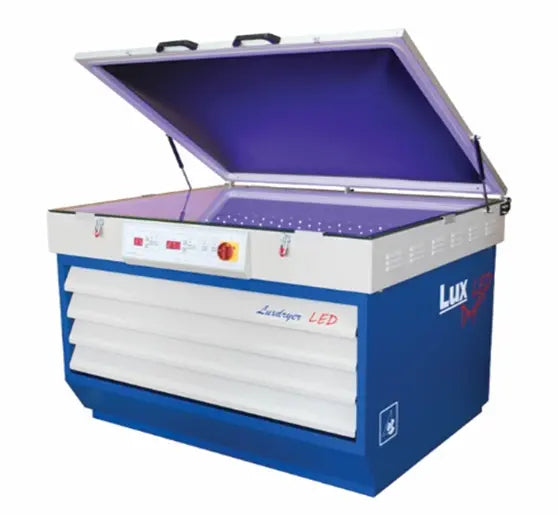

LUXDRYER LED is a machine designed to expose screen printing screens.
The machine is equipped with special UV LEDs for faster exposure of the screen with a perfect result.
LUXDRYER LED is fully automatic, and is equipped with a vacuum pressure gauge to prevent accidental opening of the screens.
The exposure frame is available in different sizes depending on the screens.
-
Technical data:

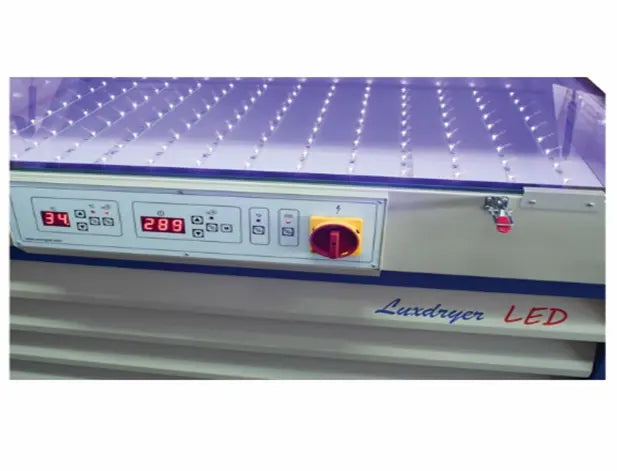

- LCD control panel
- Exposure time controlled by a digital counter
- Fully automatic operation for vacuum and exposure
- Perfect and quiet vacuum cleaner
- Special UV LED for quick exposure to the screen
- Digital temperature control for a drying cabinet
- Operating temperature of the drying oven from 15 to 50 degrees
- Drawers operating in ball bearing slides with stop
- Drying cabinet with forced ventilation
- 4 screen drying drawers
- Yellow LEDs to prepare for work
- Capable of saving up to 10 different programs
- Emulsion hardener program available as standard
| LUXDRYER LED |
LUX DR 0608 |
LUX DR 0811 |
LUX DR 1010 |
LUX DR 1012 |
LUX DR 1215 |
| Max dimension of the frame |
60 x 80 cm |
80 x 110 cm |
100 x 100 cm |
100 x 125 cm |
120 x 150 cm |
| Power of LEDs |
168 W |
297 W |
|
396 W |
1080 W |
| Dimension (Depth / Width / Height) |
86 x 99 x 103 cm |
106 x 135 x 103 cm |
|
126 x 145 x 103 cm |
146 x 170 x 103 cm |
| Weight |
150 kg |
210 kg |
|
250 kg |
350 kg |
| Power supply |
230 V |
230 V |
230 V |
230 V |
230 V |
