LUXDRYER HALOGEN insulating frame

15.538,00€ HT

Description

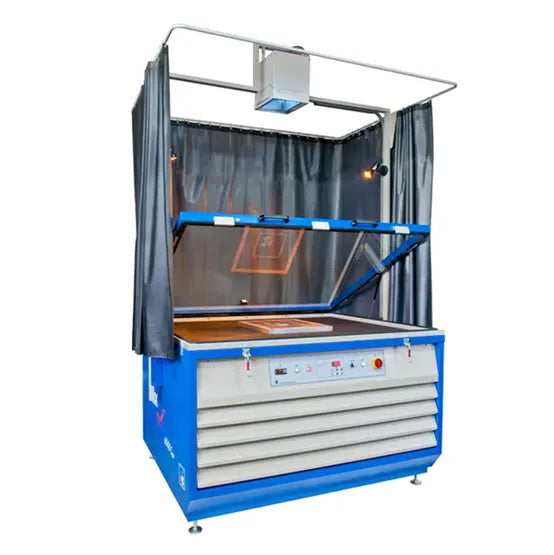

LUXDRYER HALOGEN is a machine designed to display screen printing screens equipped with a drying cabinet. The machine is equipped with a high power halogen lamp for faster exposure of the screen and a perfect result.

It can also be fitted with lamps with instant halogen light source.

The exposure frame is available in different sizes depending on the screens.


-

Technical details:

  • The machine is fully automatic with a vacuum pressure gauge fitted as standard to prevent (accidental opening of the screens.)
  • Control with digital display
  • Saving 10 programs
  • Vacuum and automatic insolation
  • Light intensity reading photocell with automatic exposure time adjustment
  • UV light protection curtain
  • Thermostat for adjusting the drying temperature of the screens (from 15 to 50 ° C)
  • Digital temperature control
  • 4 screen drying drawers
  • Yellow light for preparation
  • Silent suction
LUXDRYER HALOGEN LUX HAL 0608 LUX HAL 0811 LUX HAL 1010 LUX HAL 1012 LUX HAL 1313 LUX HAL 1416
Frame dimension 60 x 80 cm 80 x 110 cm 100 x 100 cm 100 x 125 cm 135 x 135 cm 140 x 160 cm
Power of the halogen lamp 3 kW RAPID 3 kW RAPID 5 kW RAPID 5 kW RAPID 5 kW RAPID 5 kW RAPID
Dimension (Depth / Width / Height) 150 x 35 x 250 cm 115 x 147 x 250 cm 135 x 155 x 250 cm 147 x 172 x 250 cm 187 x 212 x 250 cm
Power 8 kW 8 kW 10 kW 10 kW 12 kW
Weight 350 685
Powerful
Screen dimension

LUXDRYER HALOGEN insulating frame - 3 kW RAPID / 60 x 80 cm is backordered and will ship as soon as it is back in stock.

LUXDRYER HALOGEN is a machine designed to display screen printing screens equipped with a drying cabinet. The machine is equipped with a high power halogen lamp for faster exposure of the screen and a perfect result.

It can also be fitted with lamps with instant halogen light source.

The exposure frame is available in different sizes depending on the screens.


-

Technical details:

  • The machine is fully automatic with a vacuum pressure gauge fitted as standard to prevent (accidental opening of the screens.)
  • Control with digital display
  • Saving 10 programs
  • Vacuum and automatic insolation
  • Light intensity reading photocell with automatic exposure time adjustment
  • UV light protection curtain
  • Thermostat for adjusting the drying temperature of the screens (from 15 to 50 ° C)
  • Digital temperature control
  • 4 screen drying drawers
  • Yellow light for preparation
  • Silent suction
LUXDRYER HALOGEN LUX HAL 0608 LUX HAL 0811 LUX HAL 1010 LUX HAL 1012 LUX HAL 1313 LUX HAL 1416
Frame dimension 60 x 80 cm 80 x 110 cm 100 x 100 cm 100 x 125 cm 135 x 135 cm 140 x 160 cm
Power of the halogen lamp 3 kW RAPID 3 kW RAPID 5 kW RAPID 5 kW RAPID 5 kW RAPID 5 kW RAPID
Dimension (Depth / Width / Height) 150 x 35 x 250 cm 115 x 147 x 250 cm 135 x 155 x 250 cm 147 x 172 x 250 cm 187 x 212 x 250 cm
Power 8 kW 8 kW 10 kW 10 kW 12 kW
Weight 350 685
