The LIDERDRY VERTICAL or HORIZONTAL is a drying cabinet for screen printing screens in vertical or horizontal position.
It has been designed to dry the emulsion and evaporate the water from the screen printing screens after cleaning.
Different sizes are available.
-
Technical details:
- Dries stainless steel screen printing screens

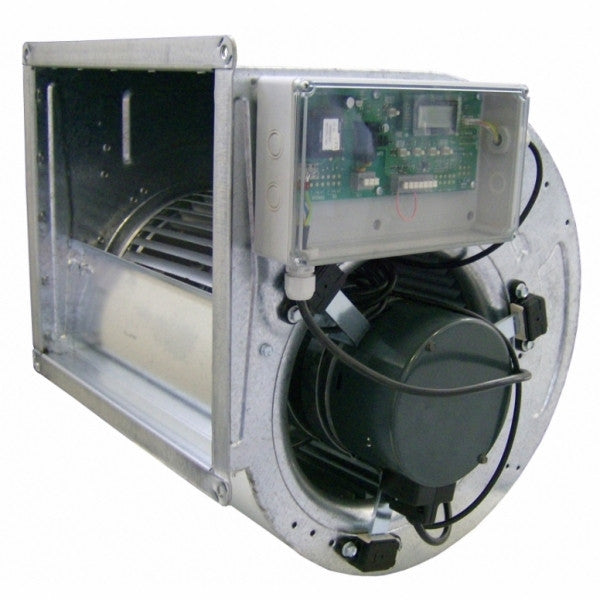

- Drying system based on air ventilation
- Heating elements in nickel cromion

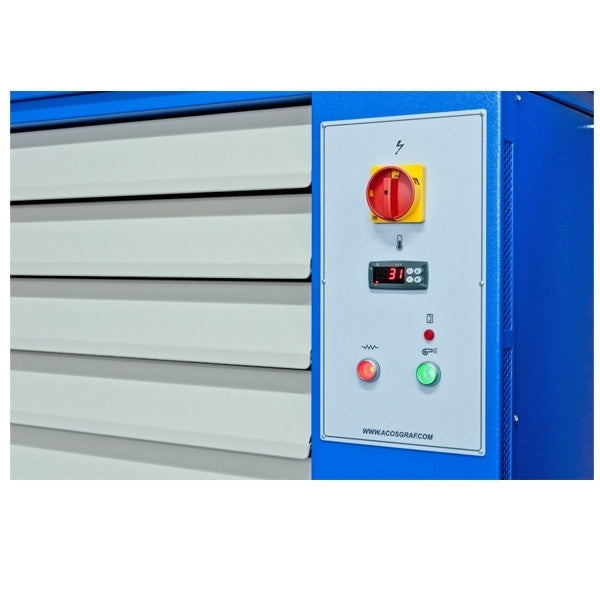

- Digital temperature controller with digital display
- Programmable drying temperature up to 50 ° C
- Dries the screen emulsion after coating or evaporates the water after washing the screens

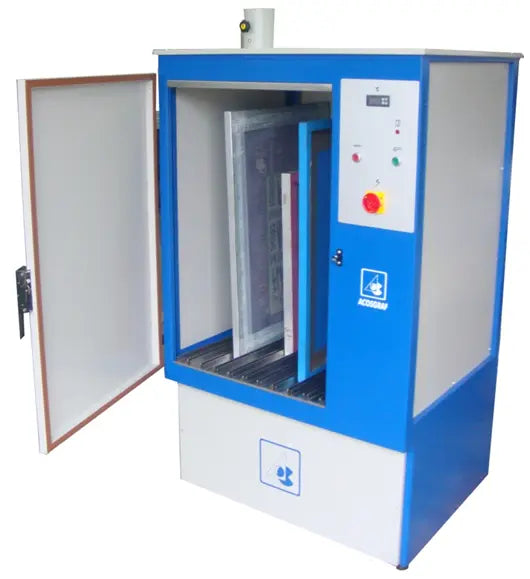

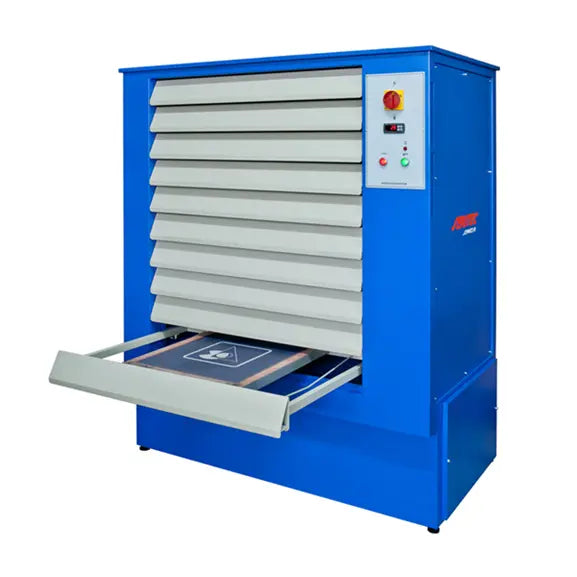

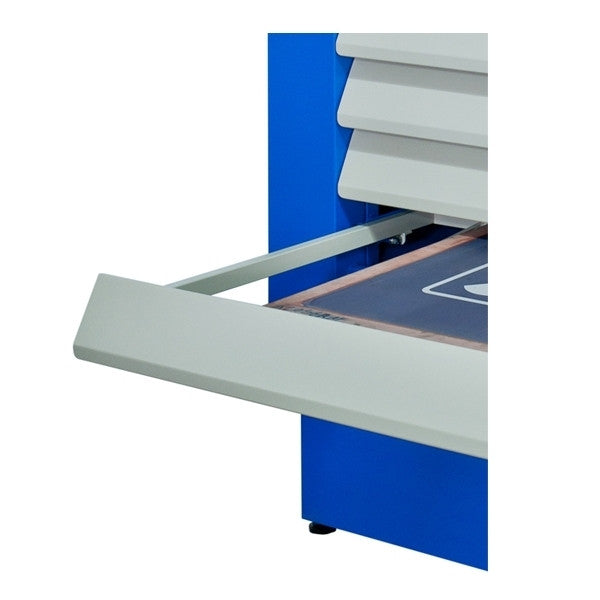

- Cabin model with vertical or horizontal drying
| LIDERDRY VERTICAL |
LD V 0710/5 |
LD V - 0710/10 |
LD V - 0912/5 |
LD V - 0912/10 |
| Quantity of screens |
5 |
10 |
5 |
10 |
| Max temperature |
50 ° C |
50 ° C |
50 ° C |
50 ° C |
| Max dimension of frames |
70 x 100 cm |
70 x 100 cm |
90 x 120 cm |
90 x 120 cm |
| Drying cabin dimension |
77 x 70 x 175 cm |
77 x 101 x 175 cm |
97 x 70 x 195 cm |
97 x 101 x 195 cm |
| Weight |
220 kg |
280 kg |
250 kg |
320 kg |
| Power supply |
230 or 400 V |
230 or 400 V |
230 or 400 V |
230 or 400 V |
| LIDERDRY HORIZONTAL |
LD H 0710/5 |
LD H - 0710/10 |
LD H - 0912/5 |
LD H- 0912/10 |
LD H- 1013/5
|
LD H- 1013/10
|
| Quantity of screens |
5 |
10 |
5 |
10 |
5 |
10 |
| Max temperature |
50 ° C |
50 ° C |
50 ° C |
50 ° C |
50 ° C |
50 ° C |
| Max dimension of frames |
70 x 100 cm |
70 x 100 cm |
90 x 120 cm |
90 x 120 cm |
100 x 130 cm |
100 x 130 cm |
| Drying cabin dimension |
90 x 157 x 110 cm |
90 x 157 x 164 cm |
110 x 172 x 110 cm |
115 x 182 x 182 cm |
120 x 187 x 110 cm |
121 x 187 x 165 cm |
| Weight |
180 kg |
350 kg |
200 kg |
450 kg |
220 kg |
270 kg |
| Power supply |
230 or 400 V |
230 or 400 V |
230 or 400 V |
230 or 400 V |
230 or 400 V |
230 or 400 V |
