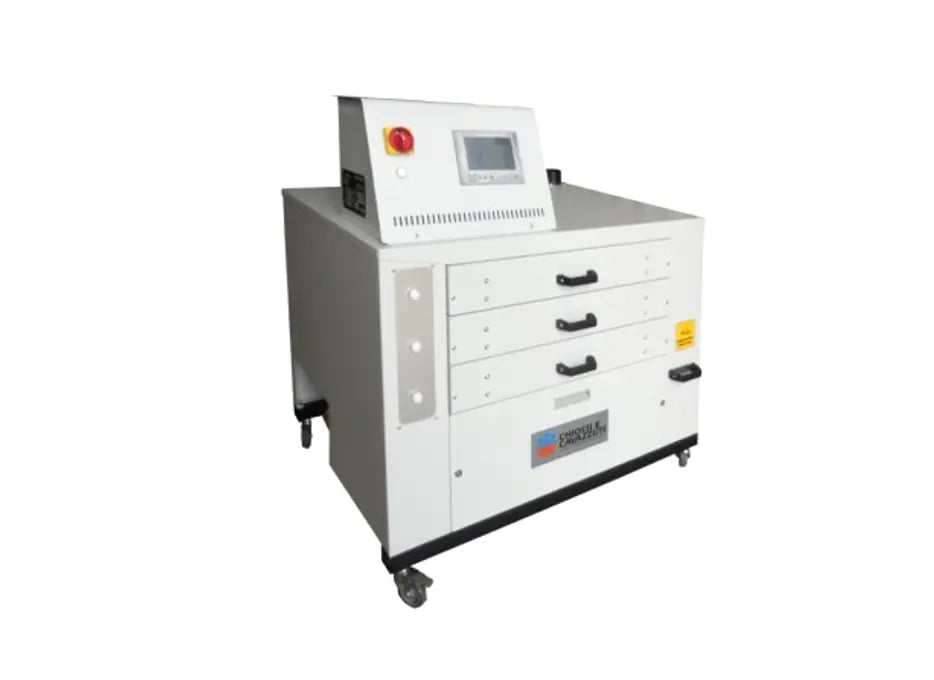

The Dido Shop drying cabinet is designed for drying digital printing on textiles. It is the ideal solution thanks to its low consumption and small size.
This drying solution is ideal for medium to long drying times, thanks to its temperature control and uniform air circulation.
This is the solution to adopt for drying fine products such as lycra, wool, silk or flocking.
Product advantages:
- Hot air drying guarantees a result that cannot be produced with other drying solutions: the print retains its vivid colors and elasticity, while maintaining a soft feel.
-
Interactive and easy-to-use touchscreen interface
-
Precise temperature control
-
Independent drawers with a timer
-
Light and sound indicator when drying is finished
-
Low consumption and small size, ideal for small businesses
-
Compact and light structure
-
Uniform ventilation throughout the oven
-
Easy maintenance, no need to replace filters
-
Very good rendering during long drying times, with temperature control and optimal air circulation
Technical data:

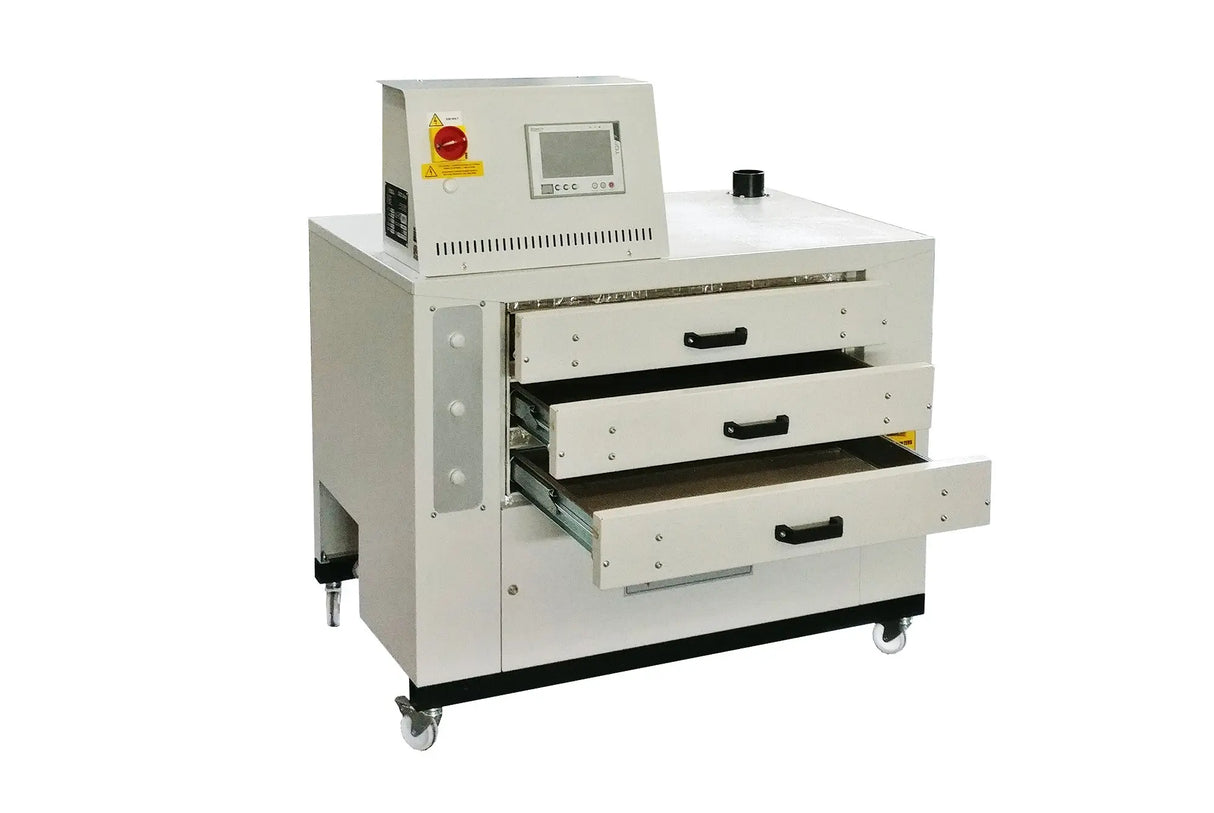

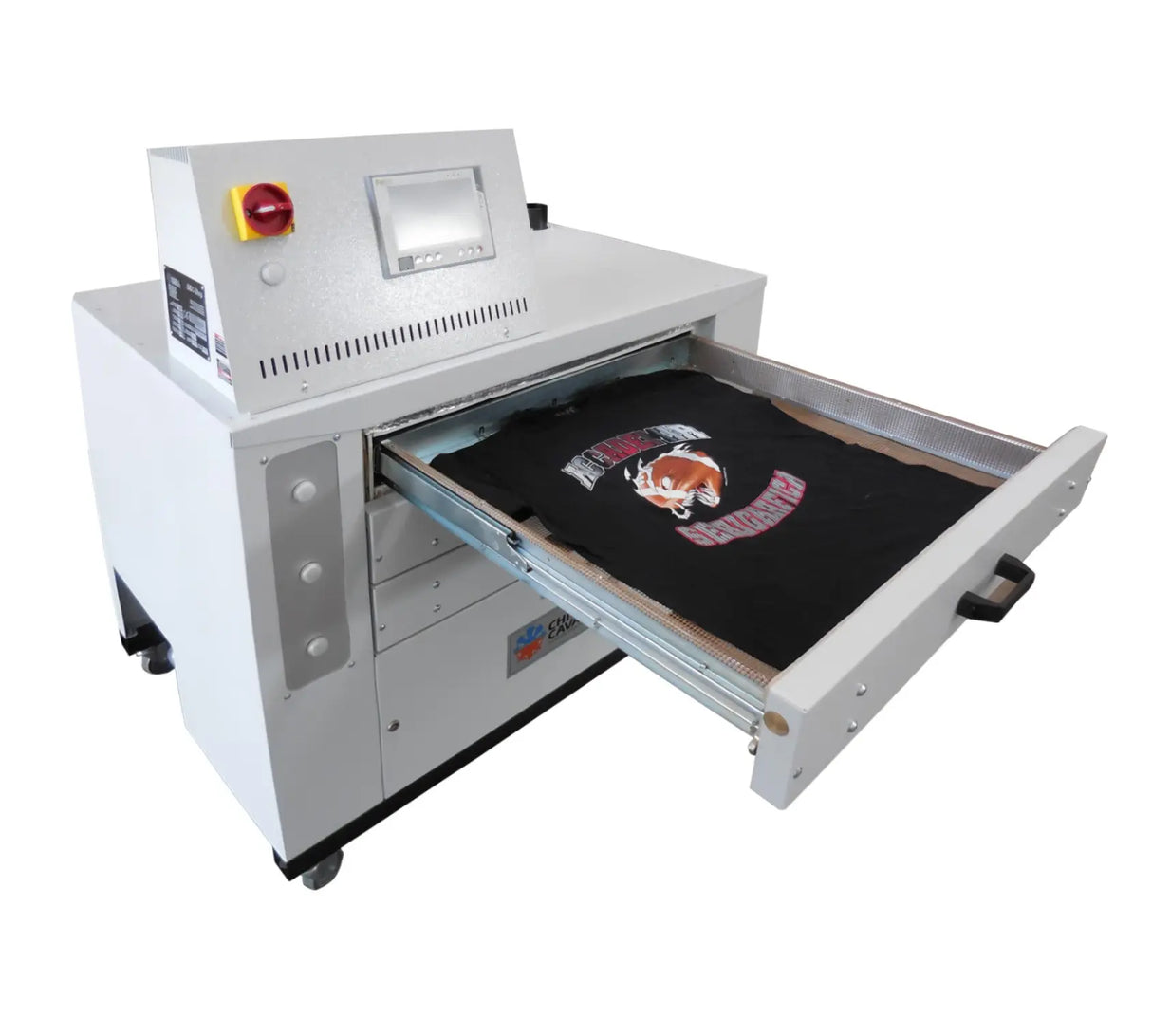

- The cabinet consists of 3 drawers. Each drawer is independent, and is equipped with its own timer, light indicator and alarm.
- The air is heated by electric heating elements, then projected horizontally in the drawer, to be uniform throughout.
- With the air filtered, the fan and ducts stay clean, improving system efficiency and energy consumption. The oven is fitted with an exhaust pipe and a heat exchanger.
- Programmable automatic start
- Cooling and automatic standby
- The oven is equipped with an easy-to-use touchscreen control screen with new features, such as automatic on / standby, to save the operator time.
- Hourly production is approximately 30 pieces / hour with a drying time of 5-6 minutes per drawer.
- Suitable for all types of digital machines, with a maximum temperature of 180 ° C.
Download the brochure
Dido Shop Brochure
| DRYING COMPATIBILITY
|
Digital textile printing |

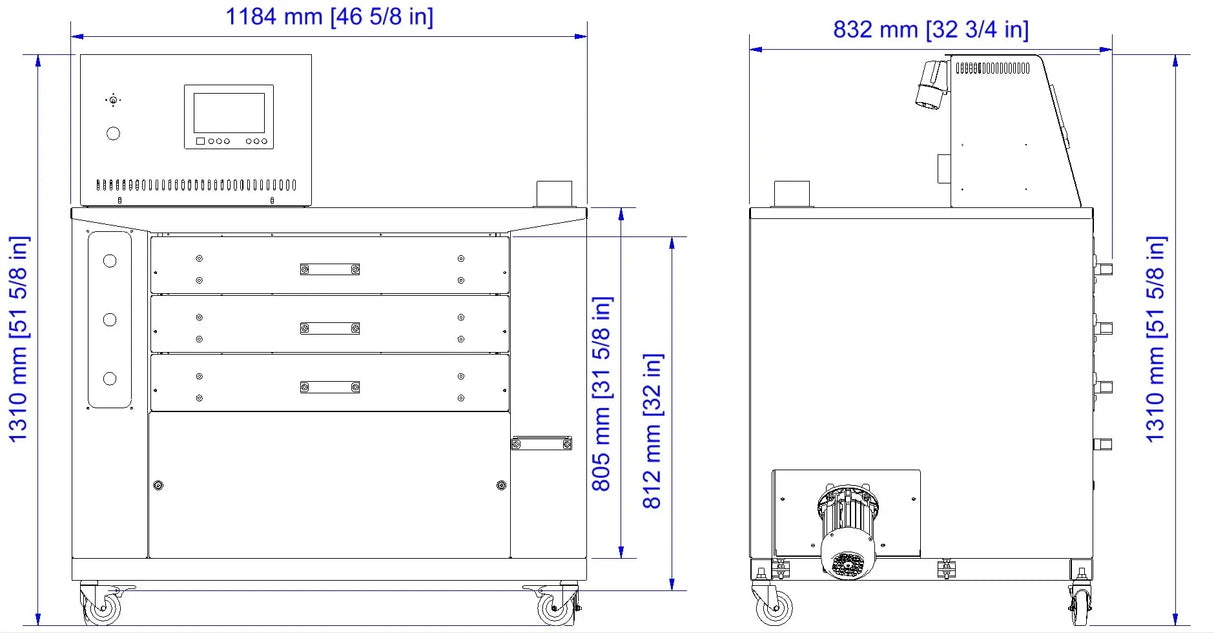

| MACHINE DIMENSIONS |
118.4 x 83.2 x 131 cm |
| POWER SUPPLY |
230 V 1P + N + PE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
