UV Dryer Oven

19.047,70€ HT

...€ HT ou dès ...€ HT/mois sur ... mois

36 mois48 mois60 mois

Offre réservée aux professionnels sous réserve d'acceptation du dossier par notre partenaire financier.

Financing conditions

Rents are to be increased by the VAT in force. Monthly periodicity, term due, payment of rents by SEPA direct debit. Residual value 2%
Valid on MUST TECHNOLOGIE equipment. Non-contractual scale, subject to change at any time without notice depending on refinancing rates.
Conditions valid subject to acceptance by the Client of the General and Specific Conditions of leasing of FRANFINANCE, SASU with capital of 31,357,776 Euros, with unique identification number 719 807 406 RCS NANTERRE, Head office: 53 rue du Port – CS 90201 – 92724 Nanterre Cedex, insurance intermediary registered with ORIAS n° 07 008 346 - www.orias.fr, and subject to acceptance of the Client's financing file by FRANFINANCE.
The transaction includes €150 excluding VAT for study and file preparation fees and €43 excluding VAT for registry fees. The fixed rate pricing conditions proposed above are those applicable.

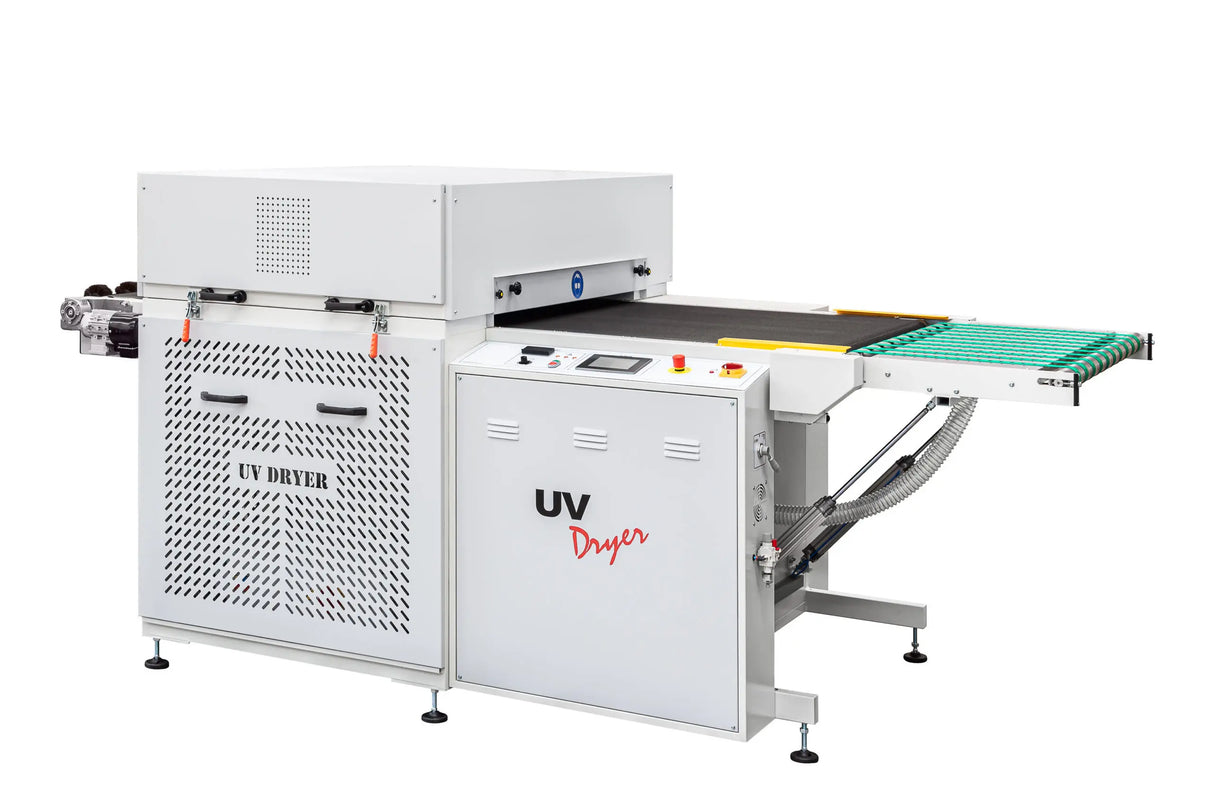

The UV DRYER is a drying tunnel suitable for drying UV inks. It is equipped with a high performance performance UV lamp capable of drying the most complex prints, printed with UV inks.

The UV DRYER can be equipped with 1, 2 or 3 lamps in one system. Several options are available, such as:

  • Low profile UV unit suitable for integration into OFFSET machines
  • Working height adjustable according to your needs
  • Auto shutter can be applied when needed.

Product advantages:
  • 100% closed UV lamp housing fitted with crystalline quartz glass so that no heat is transmitted to the object being dried

  • Antistatic Teflon mesh mat

  • High output cooling lamp fan for maximum lamp temperature

  • Work hour counter for monitoring the operator's lamp life

  • Ammeter to control lamp consumption

  • Possibility of having a suction surface over the entire surface of the carpet to help stabilize the sheet

  • Easy access to UV lamp for service and lamp replacement

  • Possibility to adjust the height of the UV lamp

  • Adjustable height for the entry of parts between 12 and 50 mm
  • Option to have the HEAT EX system to lower the curing temperature of the sheet

  • Possibility to electronically adjust the power of the lamp for optimal results.

UV DRYER UV DR 40 UV DR 50 UV DR 60 UV DR 80 UV DR 100 UV DR 120 UV DR 150
Power supply 3 x 230 V or 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V
UV lamp width 40 cm 50 cm 60 cm 80 cm 100 cm 120 cm 150 cm
Max drying width 30 cm 40 cm 50 cm 70 cm 90 cm 110 cm 140 cm
Belt width 40 cm 50 cm 60 cm 80 cm 100 cm 120 cm 150 cm
Power 5 kW 5 or 10 kW 5 or 10 kW 10 kW 10 or 15 kW 10 or 15 kW 10 or 15 kW
Dimensions 280 x 90 x 135 cm 280 x 110 x 135 cm 280 x 130 x 135 cm 280 x 130 x 135 cm 280 x 150 x 135 cm 280 x 170 x 135 cm 280 x 200 x 135 cm
Weight 250 kg 300 kg 330 kg 330 kg 350 kg 400 kg 500 kg
