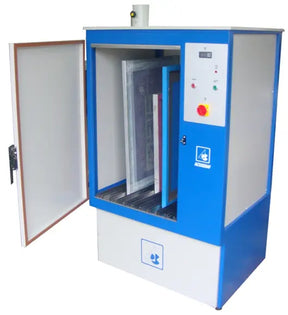

Le LIDERDRY VERTICAL ou HORIZONTAL est une armoire de séchage d'écrans de sérigraphie en position verticale ou horizontale.
Elle a été conçue pour sécher l'émulsion et de faire évaporer l'eau des écrans de sérigraphie après le nettoyage.
Différentes dimensions sont disponibles.
--
Détails techniques :
- Sèche les écrans de sérigraphie en acier inoxydable
- Système de séchage basé sur la ventilation d'air
- Éléments chauffants en cromion nickel
- Régulateur de température digitale avec affichage digital
- Température de séchage programmable jusqu'à 50°C
- Sèche l'émulsion des écrans après enduction ou fait évaporer l'eau après lavage des écrans
- Modèle de cabine avec séchage vertical ou horizontal
LIDERDRY VERTICAL |
LD V 0710/5 |
LD V - 0710/10 |
LD V - 0912/5 |
LD V - 0912/10 |
Quantité d'écrans |
5 |
10 |
5 |
10 |
Température max |
50°C |
50°C |
50°C |
50°C |
Dimension max des cadres |
70 x 100 cm |
70 x 100 cm |
90 x 120 cm |
90 x 120 cm |
Dimension cabine séchage |
77 x 70 x 175 cm |
77 x 101 x 175 cm |
97 x 70 x 195 cm |
97 x 101 x 195 cm |
Poids |
220 kg |
280 kg |
250 kg |
320 kg |
Alimentation |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
LIDERDRY HORIZONTAL |
LD H 0710/5 |
LD H - 0710/10 |
LD H - 0912/5 |
LD H- 0912/10 |
LD H- 1013/5
|
LD H- 1013/10
|
Quantité d'écrans |
5 |
10 |
5 |
10 |
5 |
10 |
Température max |
50°C |
50°C |
50°C |
50°C |
50°C |
50°C |
Dimension max des cadres |
70 x 100 cm |
70 x 100 cm |
90 x 120 cm |
90 x 120 cm |
100 x 130 cm |
100 x 130 cm |
Dimension cabine séchage |
90 x 157 x 110 cm |
90 x 157 x 164 cm |
110 x 172 x 110 cm |
115 x 182 x 182 cm |
120 x 187 x 110 cm |
121 x 187 x 165 cm |
Poids |
180 kg |
350 kg |
200 kg |
450 kg |
220 kg |
270 kg |
Alimentation |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
230 ou 400 V |
